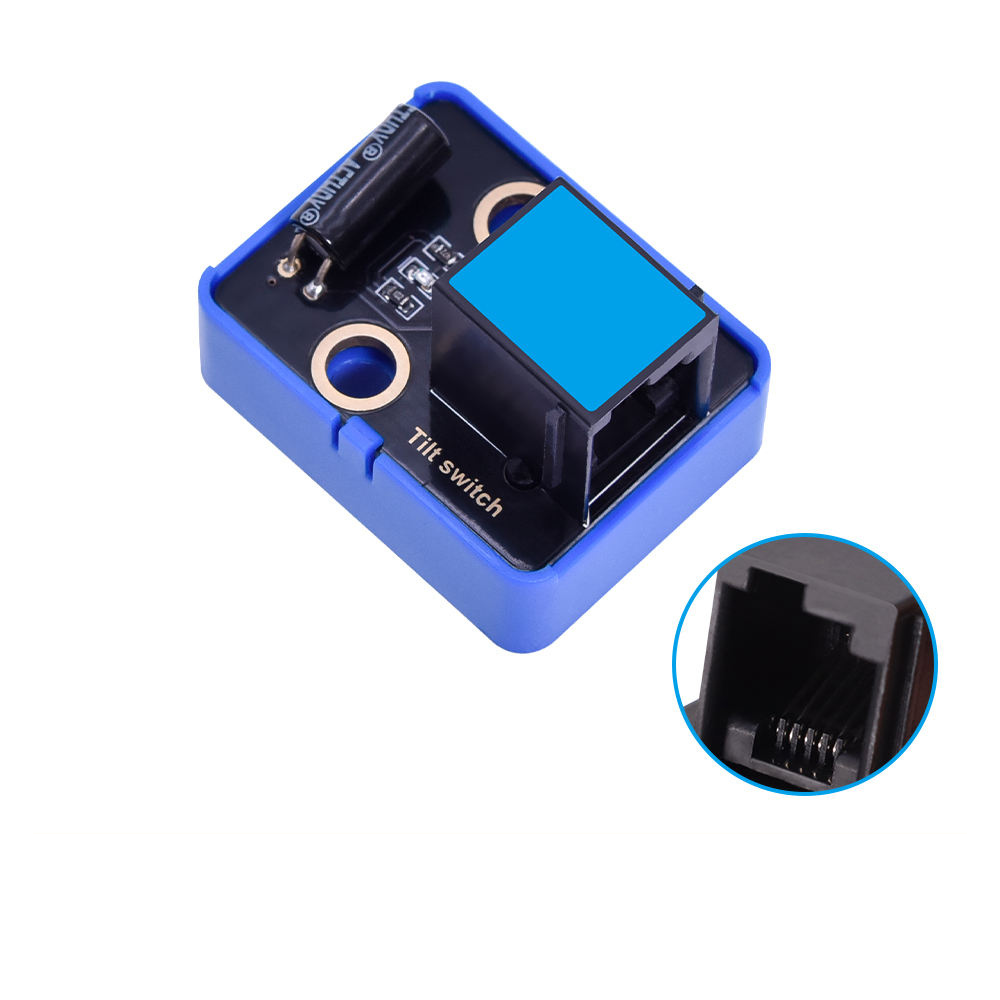

CYFI Tilt Detection Sensor Module

Detect Tilt and Orientation in Robotics Projects

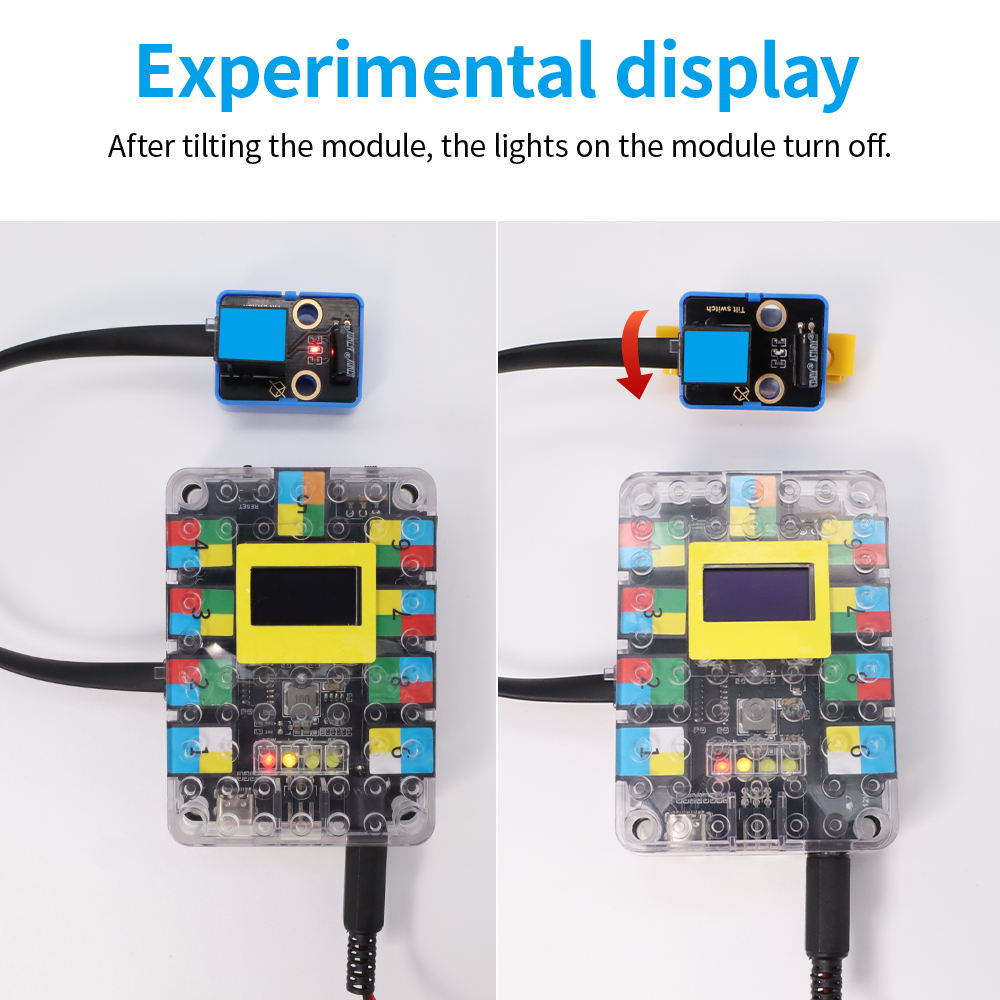

The CYFI Tilt Detection Sensor Module allows students to detect changes in angle and orientation within robotics systems. The sensor works by responding to the movement of an internal ball switch that triggers a signal when the module is tilted.

This makes it ideal for projects involving balance detection, tilt-based alarms, motion-sensitive robotics, and orientation monitoring.

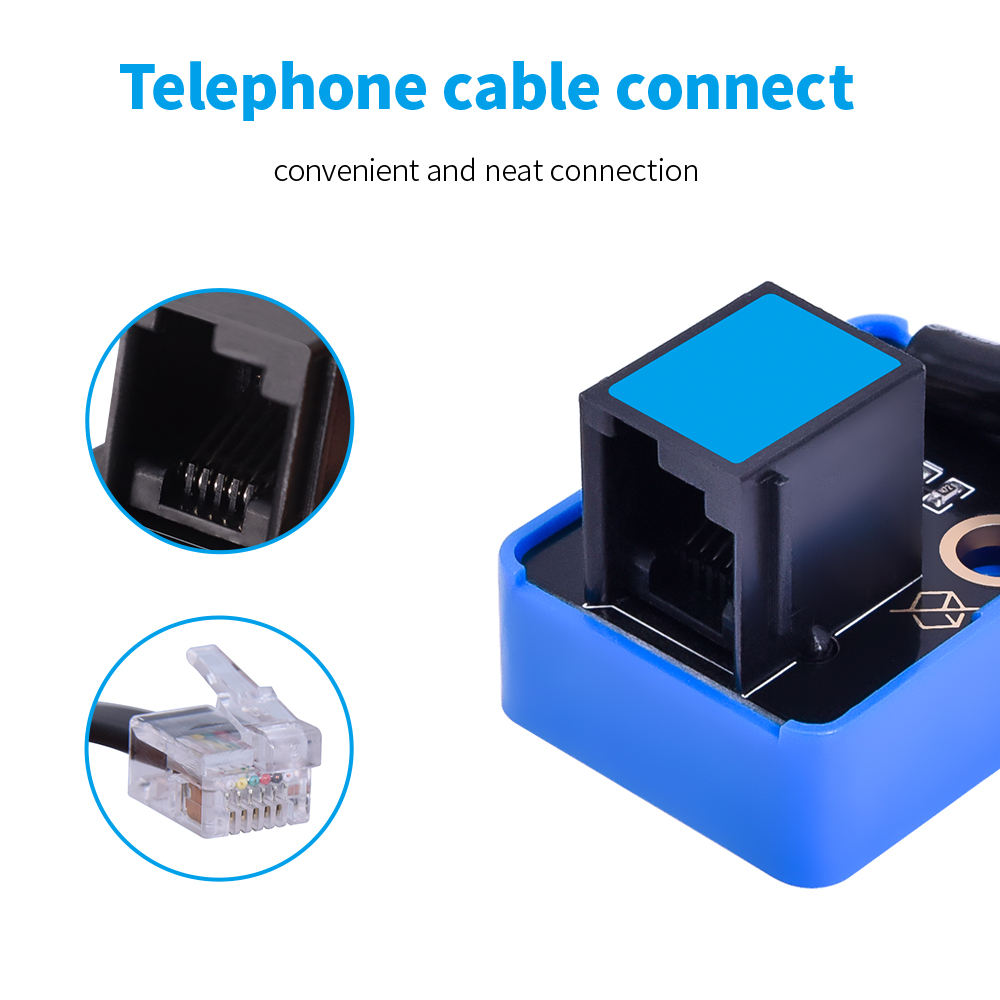

With a snap-fit connection system and no soldering required, this module is suitable for STEM classrooms, robotics labs, and beginner-friendly learning environments.

🔬 Learning Applications

• Understanding tilt and inclination detection
• Building balance-sensitive robotics projects
• Creating motion-based alert systems
• Exploring orientation-triggered electronic responses
• Hands-on STEM experimentation

⚙️ Key Features

• Detects changes in inclination angle

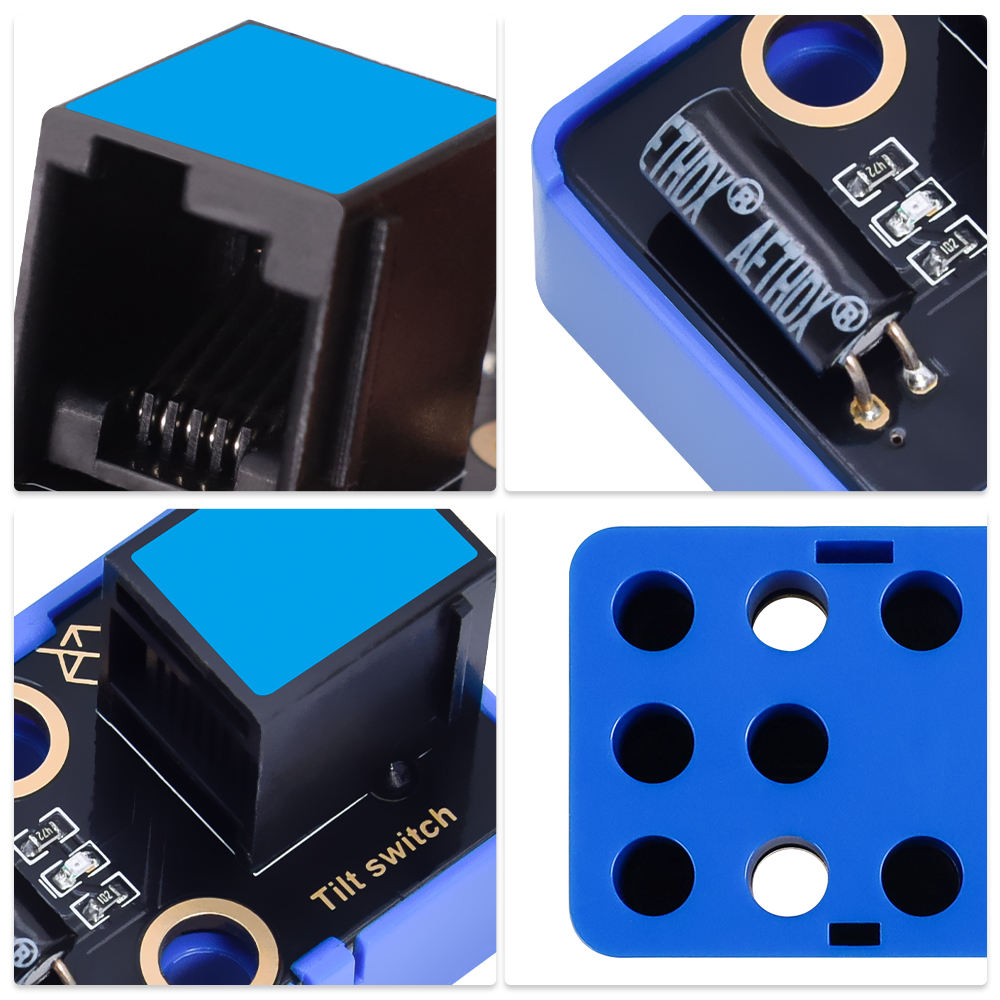

• Ball-switch based tilt detection mechanism
• Supports 3.3V and 5V systems
• Stable and reliable performance
• Compact modular design
• Snap-fit connection system
• No soldering required

📐 Technical Specifications

• Operating Voltage: 3.3V / 5V
• Operating Current: 4.2mA
• Maximum Power: 0.03W
• Operating Temperature Range: -10°C to +50°C
• Dimensions: 32 × 24 × 18 mm
• Weight: 4.8g
• Compliance: RoHS

🎓 Recommended Age & Skill Level

• Age: 8 years and above
• Skill Level: Beginner to Intermediate

🛡 Safety Information

• Designed for educational robotics use
• Avoid strong physical impacts
• Adult supervision recommended for younger learners
• Store in dry conditions

Why Choose CYFI Robotics Modules?

CYFI modules provide practical exposure to real sensor technology used in robotics and automation systems. The tilt detection module helps students understand how orientation changes can trigger electronic responses, strengthening foundational robotics concepts.
